Sonoscape A6 Ultrasound with 2 probes

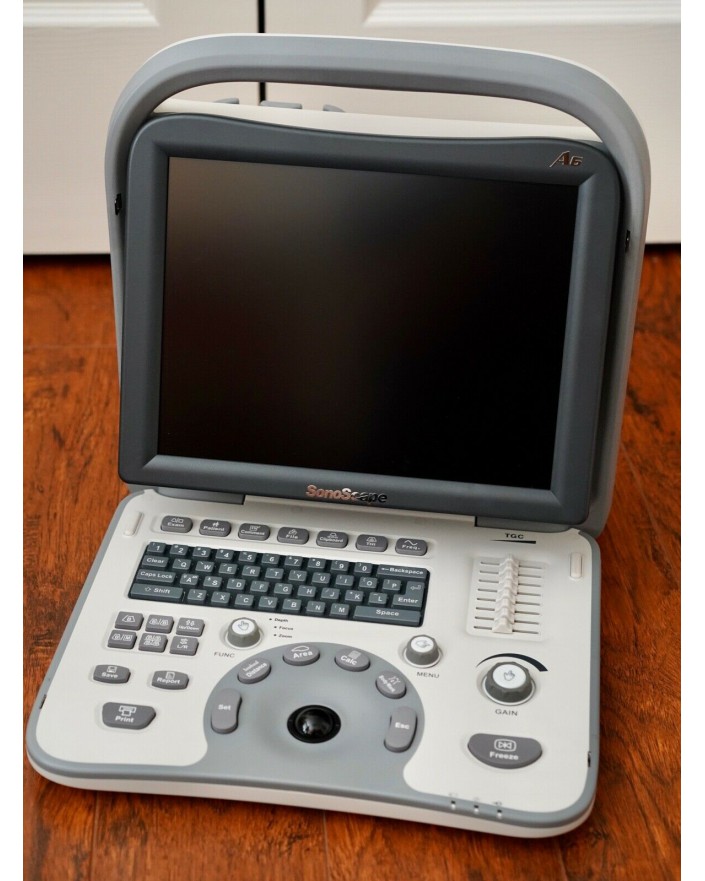

Sonoscape A6 Ultrasound Machine Description

• System Design: HCU with LCD monitor, monitor angle 30 degree adjustable
• Image Mode: B, B/B, M, B/M, 4B, THI
• Gray Scale: 256
• Display: Positionable 12″ anti-glare LCD monitor
• Transducer Frequency: 5 Variable, Up to 12 MHz (depending on transducers)
• Transducer Connector: 2 (standard)
• Digital Technology
  • Tissue harmonic Imaging (THI)
  • Digital Beam-forming (DBF)
  • M-turning one-button image optimization
  • Five variable frequency
  • Chroma function
• Scanning Angle: Up to 180° (depending on transducers)
• Scanning Depth: Up to 320 mm (depending on transducers)

Sonoscape A6 Ultrasound Machine Specifications

• Net weight: 13 lbs

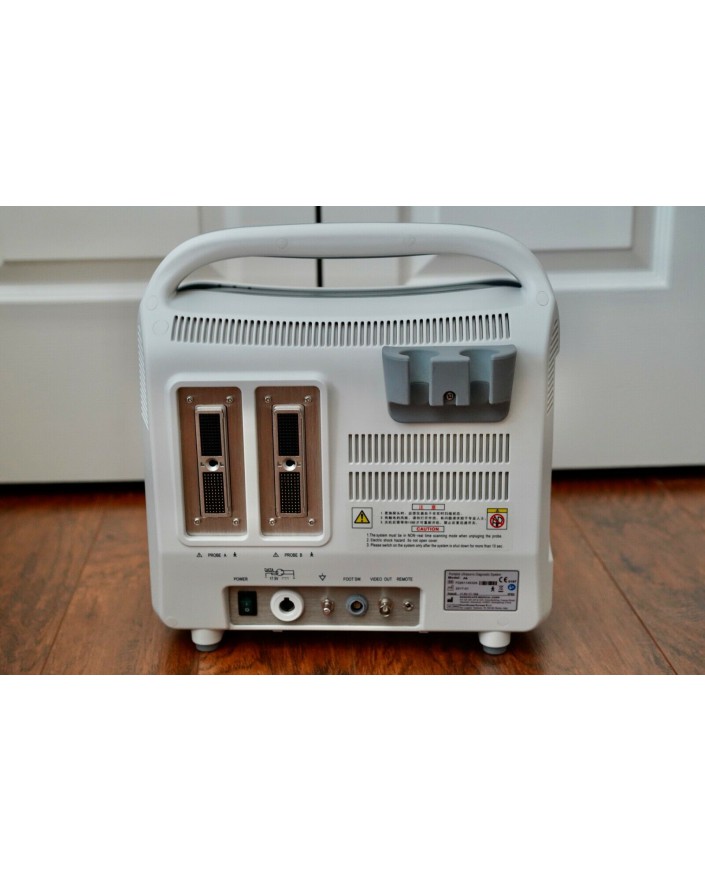

• Peripheral Port
  • S-Video
  • VGA
  • two USB ports
  • footswitch
  • LAN
  • Print control
  • DICOM 3.0
• Electrical Info: 110 – 220 VAC | 50 – 60 Hz
• Dimensions: 13 1/3″ L x 13 1/3″ W x 6″ H

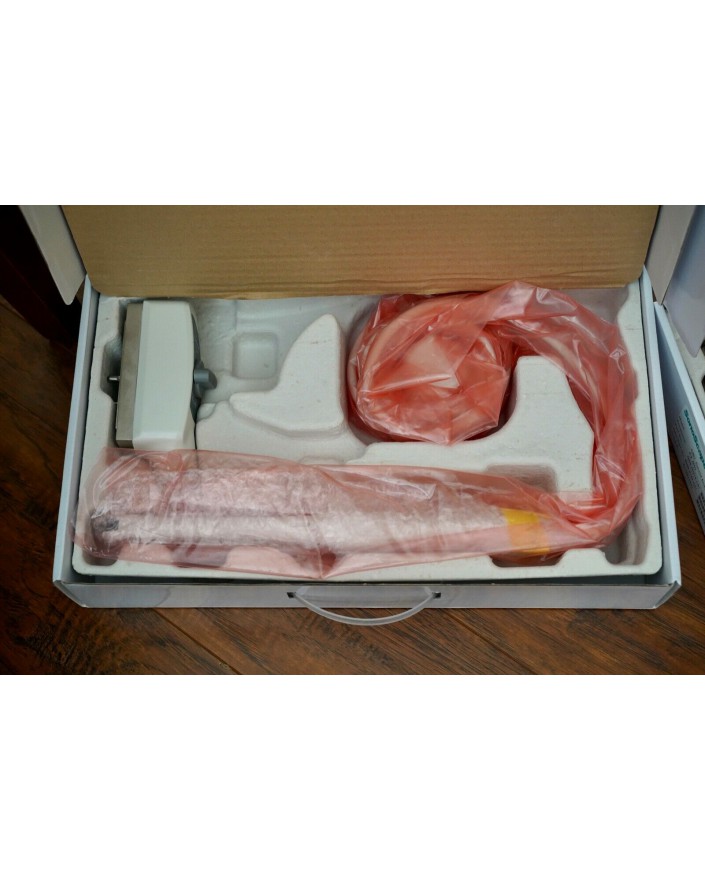

Probes:

Transvaginal probe 6V4

Curved array transducer C351
