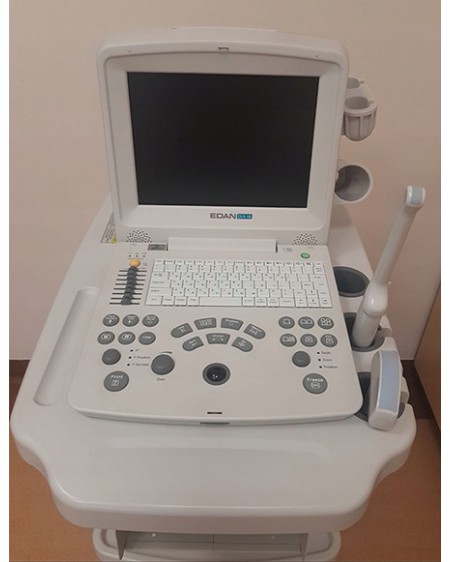

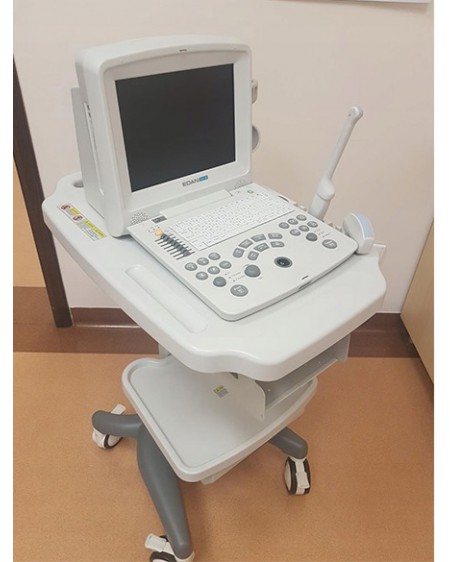

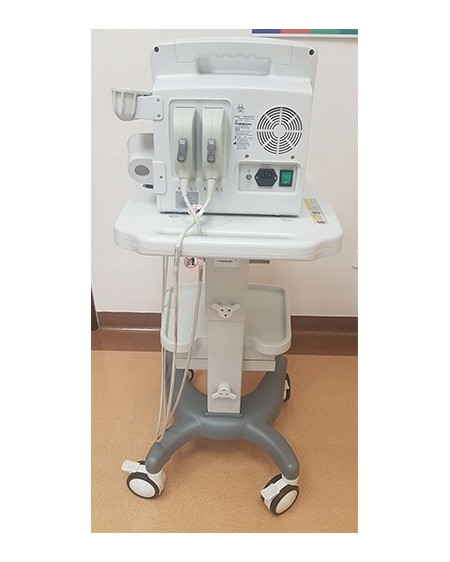

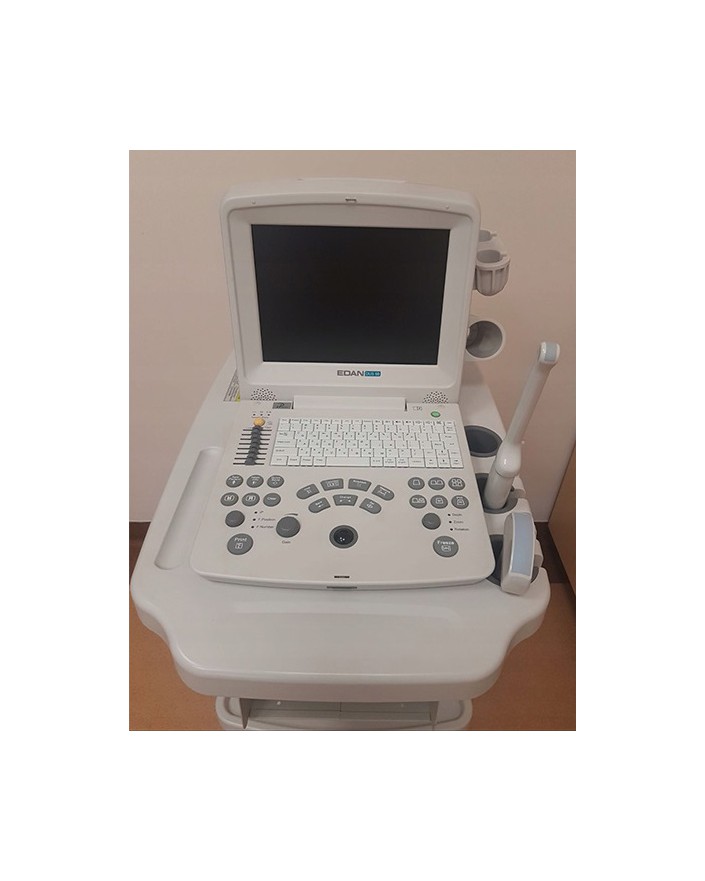

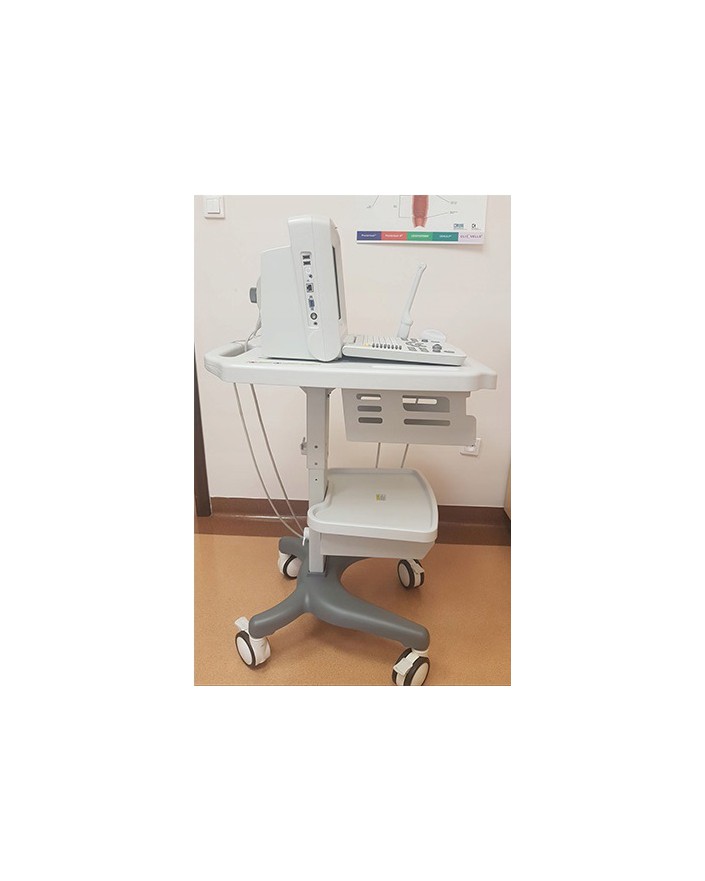

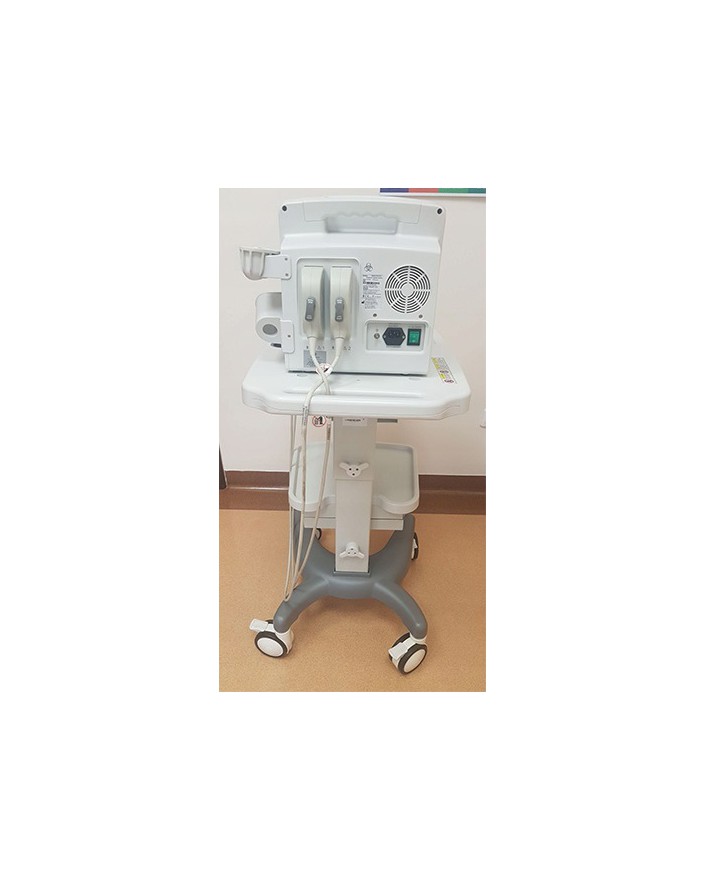

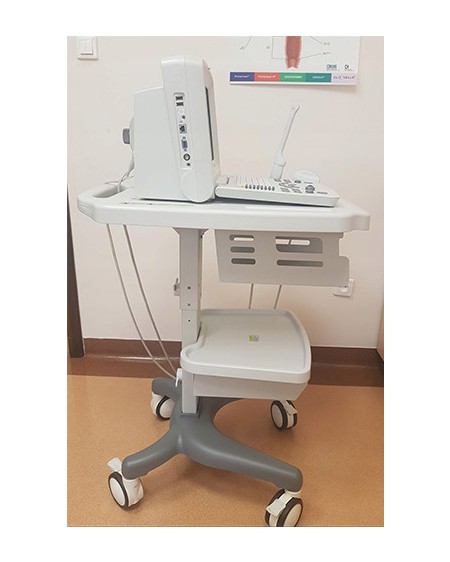

EDAN DUS 60 VET Veterinary Diagnostic Ultrasound
The DUS 60 (2013) VET is an impressive new compact ultrasound system providing superb value and best-in-class quality across a wide range of veterinary applications. With the added support of pulsed wave Doppler imaging, the DUS 60 VET meets higher diagnostic requirements.
$3,000.00
Tax included
Specifications;
• Imaging mode: B,2B, 4B, B+M,M, and PW
• Gray scales: 256
• Display: 12.1” TFT-LCD
• Transducer frequency: 2.0-10.0 MHZ
• Scanning angle: Up to 152 degrees (transducer dependent)
• Scanning depth (mm): From 19 to 324 (transducer dependent)
• Applications: Abdomen, obstetrics, gynecology, small parts, musculoskeletal, cardiology peripheral vascular, urology
• Cine loop: 256 frames bidirectional cine-loop
• Zoom: X1.0, X1.2, X1.4, X1.6, X2.0, X2.4, X3.0, X4.0 in distance
• Panoramic zoom in real-time and freeze
• Storage media: Built-in Flash, Internal large capacity data storage
• Built-in image archive: 504MB built-in image storage
• Body mark: >130 types
• Power supply: 100V-240V~50Hz/60Hz
• Lithium battery: Continuous operation for up to 2 hours
• Dimensions: 330mm(13.0”) (L) X 220mm(8.7”) (W) X 320mm (12.6”) (H)
• Net weight: 7.1kg (15.7 lb)
• B-mode: Distance, circumference, area, volume, ratio, %stenosis, histogram, and angle
• M-mode: Distance, time, slope, and heart rate
• Doppler: Time, heart rate, velocity, acceleration, trace, and RI
