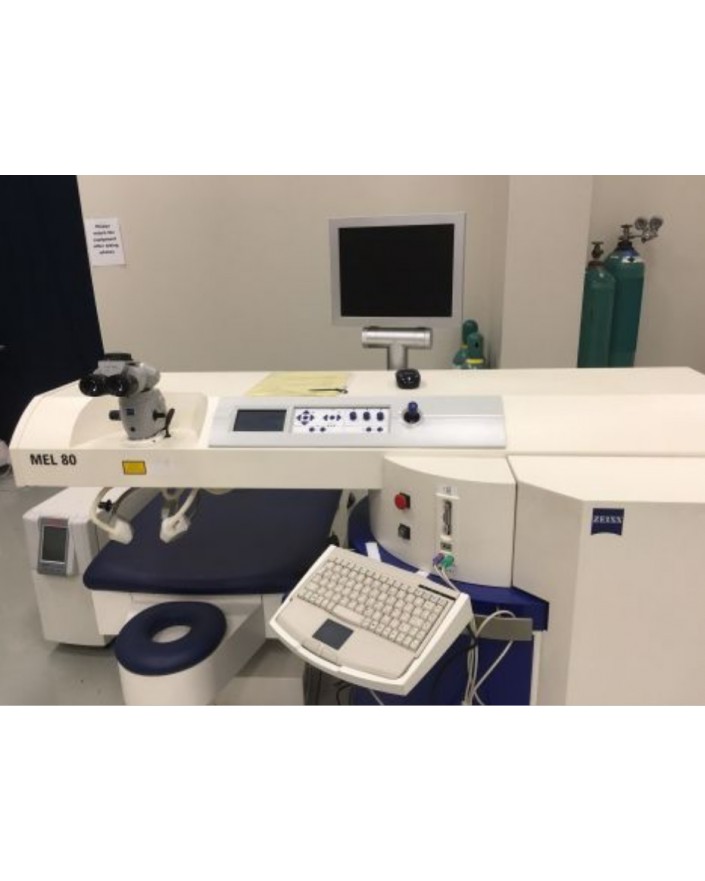

2005 Zeiss MEL 80 Excimer Laser

TECHNICAL SPECIFICATIONS

- Type ArF excimer laser

- Wavelength 193 nm

- Frequency 250 Hz

- Aiming beam diode 650 nm (laser class 1)

- Weight of MEL 80: 290 kg incl. gas cylinder

- Weight of patient supporting system: 232 kg

- Dimensions (Laser, W x D x H) 800 x 1550 x 1490 mm

- Dimensions including patient supporting system :(W x D x H) 1800 x 3140 x 1490 mm

- Power supply

100 V AC; 50/60 Hz; 17.5 A

120 V AC; 50/60 Hz; 14.6 A

208, 220, 230, 240 V AC; 50/60 Hz; 7.9 A

- Approval CE mark as per Medical Device Directive 93/42/EEC

- Gas supply Integrated ArF-Premix cylinder 10 l
