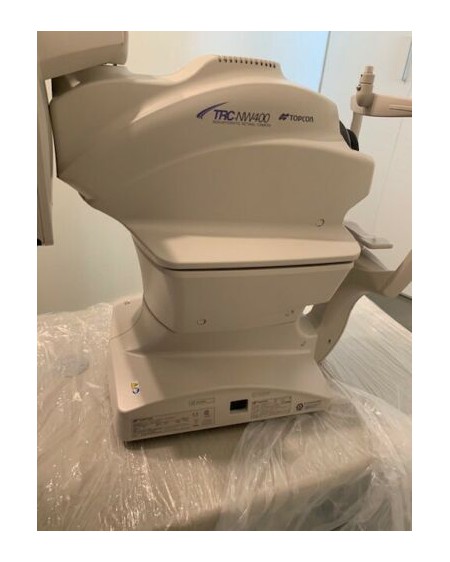

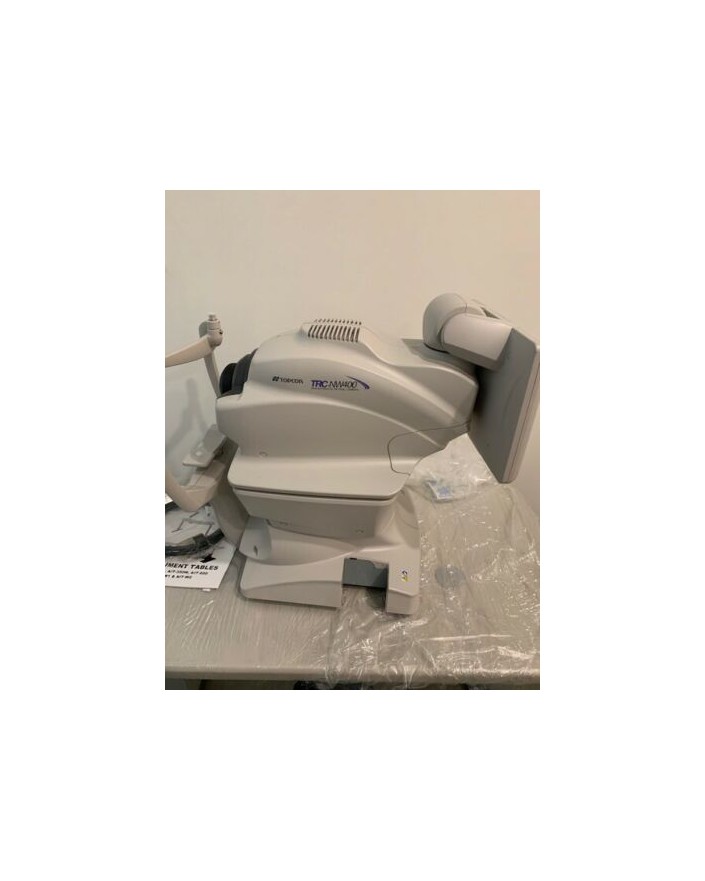

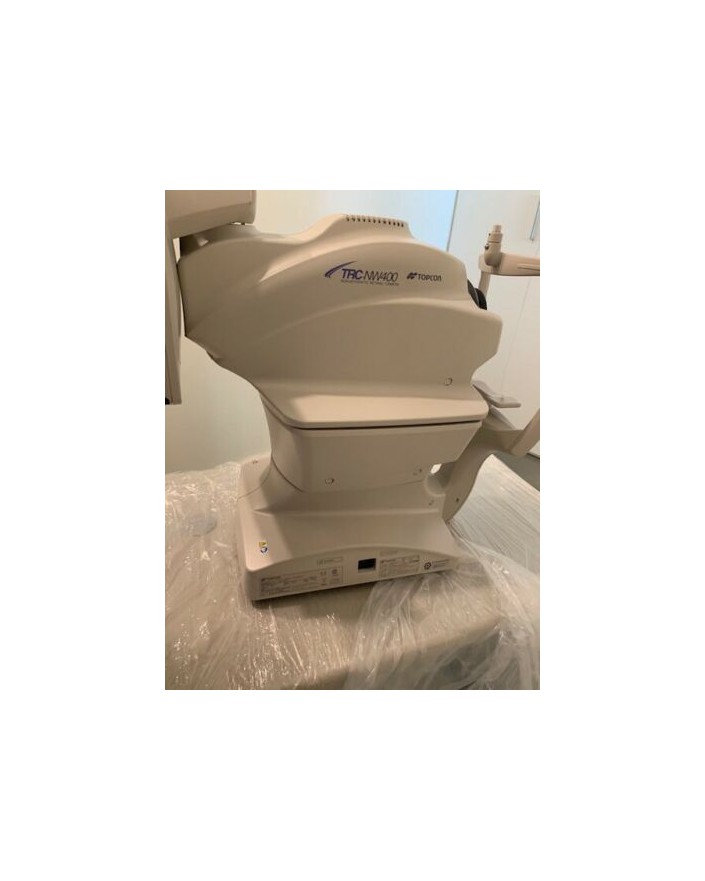

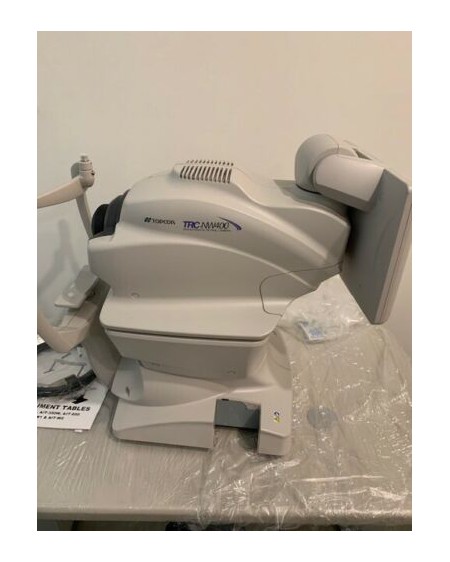

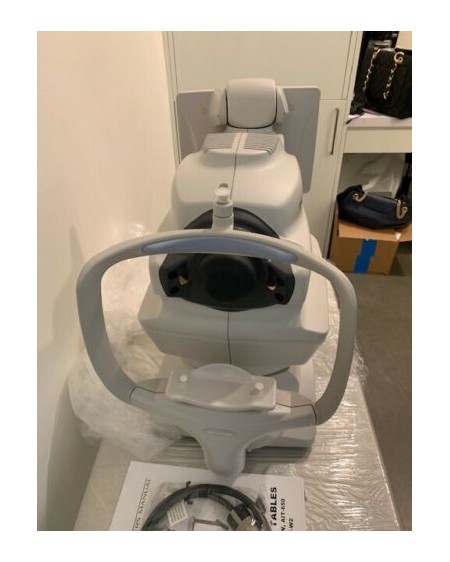

Topcon TRC-NW400 Non-Mydriatic Retinal Camera

Features:

Fully automated operation and automatic transfer from eye to eye
10” touch screen monitor for instrument control and image display
Auto stereo feature does not require manual movement of the optical head
Anterior segment photography
9 internal LED fixation targets
DICOM compliant
Can work as a standalone device or in combination with capture software


Specifications:
Angle of coverage: 45 degree/30 degree or equivalent (digital zoom)
Working distance: 34.8mm (in fundus photography)
Pupil diameter for photography: 45 degrees/4.0mm or more
Patient diopter correction range:
Without the diopter compensation lens: -13D to +12D
When the concave compensation lens is used: -12D to 33D
When the convex compensation lens is used: +11D to +40D
Power Source: 120VA/50-60Hz
Dimmensions: 18kg/383mm x 660mm x 700mm
