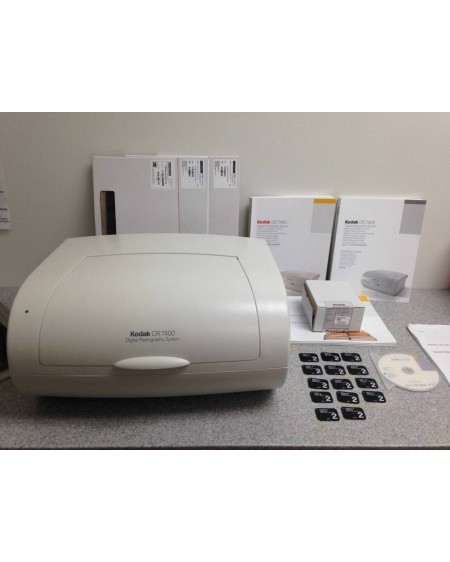

Carestream CS 7400 Digital Radiography Intraoral Scanner

Specifications

Theoretical Resolution
- Panoramic/Cephalometric: <10 lp/mm
- Intraoral: <20 lp/mm

True Image Resolution
- Panoramic/Cephalometric: Standard resolution – 4.5 lp/mm, High resolution – 6 lp/mm
- Intraoral: Standard resolution – 8 lp/mm, High resolution – 10 lp/mm

Plate Size
- Panoramic: 5" x 12" / 15 cm x 30 cm
- Cephalometric: 8" x 10" / 18 x 24 cm
- Intraoral: #0 - 22 x 31 mm, #1 - 24 x 40 mm, #2 - 31 x 41 mm, #3 - 27 x 54 mm, #4 - 57 x 76 mm

Scan Time
- Panoramic: 74 seconds
- Cephalometric: 95 seconds
- Intraoral - High Resolution: 67 seconds (average 10.2 seconds per image)
- Intraoral - High Speed: 40 seconds (average 6.7 seconds per image)
- FMS - High Resolution: Up to 255 seconds
- FMS - High Speed: Up to 135 seconds

Plate Erasing
- Automatic - built-in erase lamps (manual erase available)

Plate Type

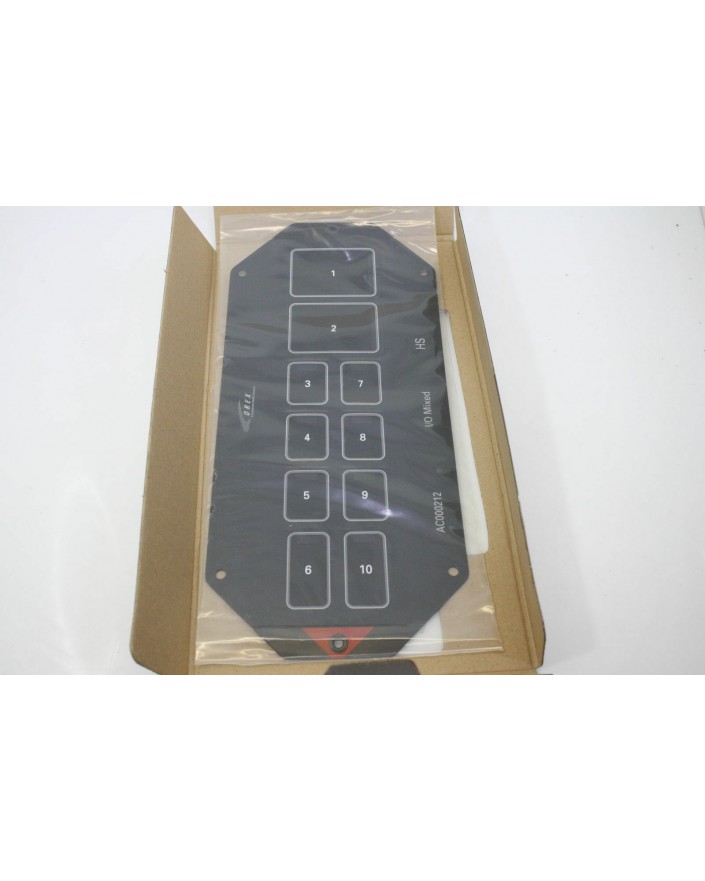

- CS imaging plates for intraoral/extraoral

Dimensions (W x D x H)
- 18.9" x 15" x 9.5" (48 cm x 38 cm x 24 cm)

Weight: 39.6 lbs. (18 kg)

Power Consumption
- 100-240 VAC / 50/60 Hz 2 A; external surge protector UPS strongly recommended

Environmental Operating
- Conditions: Temperature: 18 - 30°C, 64 - 86°F
- Relative Humidity: 85% (max) non-condensing

Daylight Operations
- Avoid keeping unit near windows or direct light source

Embedded Laser
- Visible Light Output: 635-650 nm (class 3b)
- Output Power: up to 20 mW

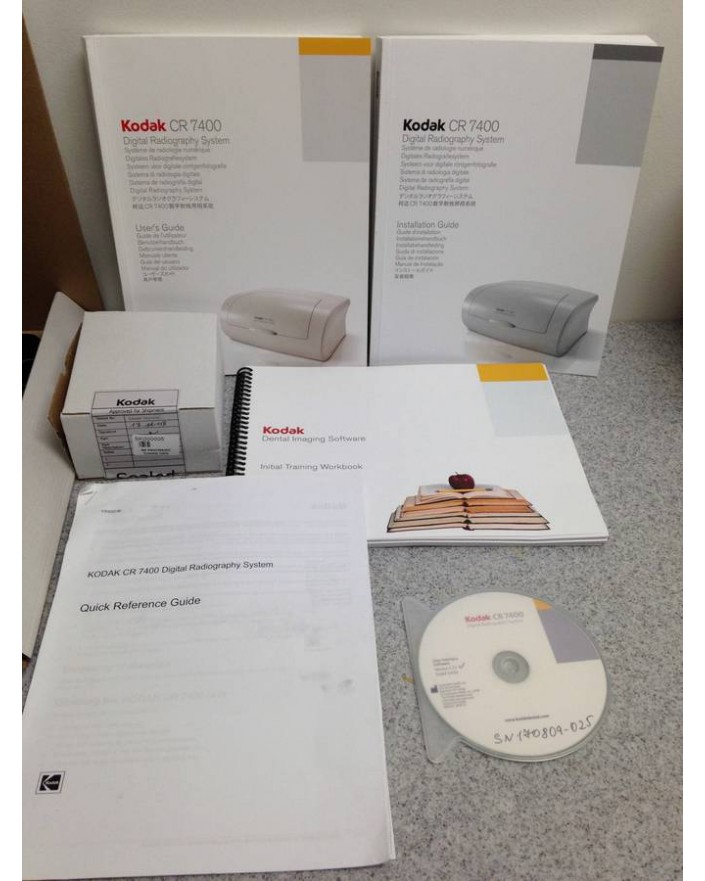

Package Includes

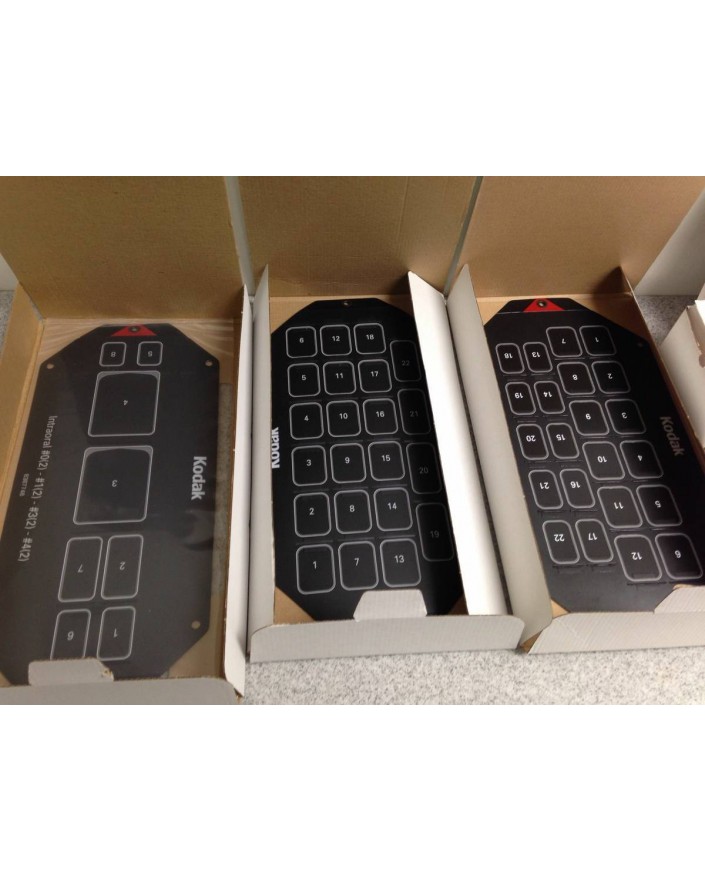

* 20 Size 2 phosphorous plates
* 200 barrier envelopes
* 200 light protection pouches
* 4 different plate holders, for all plates (0, 1, 2, 3, 4)
* Dental Imaging Software. Specialty Ortho or Oral surgery software is an additional charge.
* Two Year Warranty
